Aquifer 4000

Article No. : AF4000

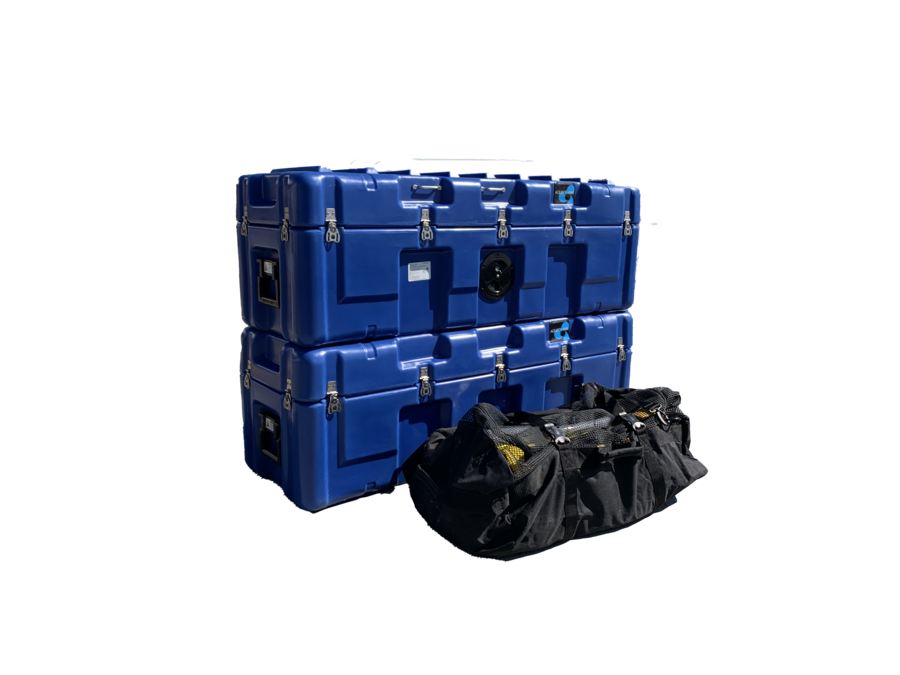

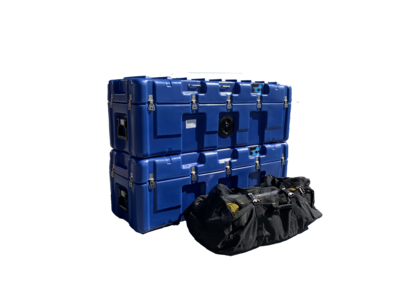

The Aquifer 4000 is a high-volume desalination system designed to make 16 m³ per day (4,300 GPD) of drinking water from any water source including fresh, brackish and seawater.


Quick Facts
  • Serves communities up to 5,400 people
  • Highly portable - requires only two people to transport
  • Energy efficient - requires only a small generator
  • Flight-read for "second in" operations
  • Heavy-duty, military-grade cases
  • No tools required to assemble
  • Rugged construction made for long-lasting durability
  • Composite construction for corrosion resistance
  • Fixed system recovery for easy operation

Whats in the box
  • Pump Case A

    Pearson Pump Assembly / Boost Pump Assembly / Control Box Assembly / 5-Micron Prefilter (1 piece) / Quick Guide (3 pages)

    Membrane Case B

    Membrane Housing (4 pcs)

    Mesh Bag

    Electrical Wire Harness Assembly / High Pressure Hoses / Low Pressure Hoses

    Strainer / Inlet Assembly / Storage Chemicals / Priming Foot Pump / Filter Bowl Wrench

    Handheld Salinity Meter / Vent Tape



  • Product Information
  • Specifications
  • Downloads
  • Description

    The Aquifer 4000 is a high-volume desalination system designed to make 16 m³ per day (4,300 GPD) of drinking water from any water source including fresh, brackish and seawater. This new highly portable system can be carried easily by a two-person team. The Aquifer 4000 is an energy efficient system that requires a small 3.5 kW generator for operation and was designed to survive in the toughest environments. This system is ideal for Disaster Relief, Humanitarian Programs and applications where portability is a necessity.



    System type:automated
    Water Source:AC
    Output per Time (gal/L):678 liter/h (179 us gal/h)
    Capacity Rating (gal/L day):16,275 liter/day (4300 gallon/day)
    Salt rejection:99.5 %
    Usage:2.6 kWh on seawater
    Downloads
